VSAT Ku Band Transceiver Codan Reference Manual (3.2 MB)

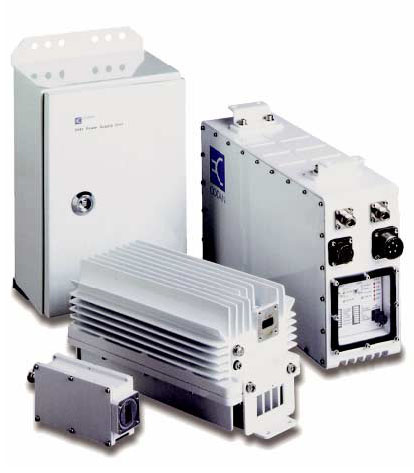

CODAN 5900 series Ku Band VSAT satellite transceivers offer a wide range of distinctive advantages and enhanced features for satellite communications systems based in remote or challenging geographic regions.
Available in all common VSAT Ku-Band operating frequencies and 70 or 140 MHz IF configurations-and a range of power outputs-the CODAN 5900 provides industry leading technical performance.
Key features
Durability
The CODAN 5900 series VSAT transceiver is designed and tested to meet its performance specifications in an ambient temperature range from -40°C to +55°C and up to 100% relative humidity, ensuring long-term survival in extreme conditions.
The thermal protection provided allows operation up to +60°C ambient. Field experience shows that MTBF of greater than 100,000 hours can be expected.
RF performance
RF performance is superb, particularly: intermodulation performance, gain stability over temperature and flatness across the IF band.
The CODAN 5900 VSAT transceiver also boasts industry leading spurious and harmonics specifications while guaranteed RF performance ensures expensive system link margins do not have to be used to cope with RF transceiver variations. The CODAN 5900 VSAT transceivers high linearity and low spurious characteristics contribute to superior multi-carrier performance.
Output power options
Output ratings of 4, 8, and 16 watts are standard, while a higher power option is also available.
The 8 and 16 watt VSAT SSPA include an CODAN output power monitoring capability via the monitor and control serial interface.
Power consumption
CODAN Ku-Band VSAT transceivers all feature low power consumption and low temperature rise, ensuring internal components do not suffer undue stress.
Power supply
The CODAN 5900 VSAT transceivers features a 48 V DC floating input (37 V to 72 V range) with reverse polarity protection. This is ideal for battery backup and solar-powered systems. In addition, the CODAN 5900 VSAT transceivers may be supplied with an optional CODAN AC power supply unit with field selectable 115/230 V operation.
The AC power supply unit is extremely robust and particularly suited for operation from poor quality AC supplies.
Internal protection
Internal protection against high temperature and short or open circuit RF output is standard. As well, input voltage detection ensures reliable shutdown and restart under brownout or blackout conditions.
External protection
All user access is via a transparent cover, which can be removed without exposing major internal electronics to the elements. Special sealant is used to ensure the sealing integrity of all connectors.
RF modules are fully sealed and pressure tested to 34 kPa (5 psi). Particle and moisture penetration is rated to IP68 and the units are submersible to 3metres.
Advanced features
Enhanced monitor and control
All operating functions can be controlled and monitored via the serial interface. The operating configuration is stored in EEPROM to ensure the setup parameters are restored in the event of a power failure.
Universal interface compatibility
The CODAN 5900 VSAT transceiver has universal interface compatibility capable of operating with dumb terminals, laptop/PC emulating terminals, hand-held terminals and personal organizers without requiring proprietary software. The versatile configuration options support: contact closure, RS232, RS422 and RS485 (2 or 4 wire).
Two dedicated controllers are available from Codan:
- CODAN 5560 Hand-Held Controller, suitable for in the field installation setup
- CODAN 5570 Remote Controller, suitable for indoor rack mounting to provide permanent monitoring and control capabilities

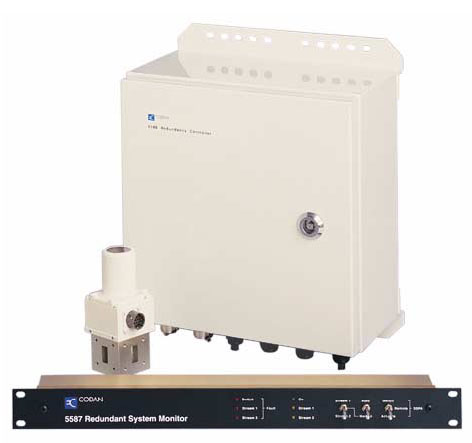

Redundancy switching system
A redundancy switching system is available to provide an automatic changeover to a second transceiver to maximise link availability and minimise any disruption to service. This system is fully outdoor mounted, but can be supplied with the 5587 Redundant System Monitor to provide indoor monitor and control.
Major configuration options
Transmit frequency VSAT band (GHz)
Receive frequency VSAT bands (GHz)
|
1.
|
10.95 - 11.7 |
| 2. |
11.7 - 12.2 |
|
3.
|
12.25 - 12.75 |
All systems use the common CODAN 5900 series VSAT converter module, which has an RF input of 950-1700MHz. Receive bands are selected by the use of an appropriate LNB. Standard frequency bands are listed above whilst other bands are available on request.
A selection of LNB (phase locked to the internal 10 MHz reference in the 5900 converter module) is available to best meet noise temperature and configuration needs.
Bandwidth
|
N
|
Narrow band (40MHz); field selectable 70 or 140 MHz IF
|
|
W
|
Wide band (80 MHz); 140MHz IF
|
CODAN VSAT SSPA
WR75 - Waveguide output.
Options and accessories
- CODAN Hand-Held Controller
- CODAN Remote Controller
- CODAN Redundancy Switching System
CODAN quality and service
All CODAN Ku-Band VSAT transceivers are built and tested in CODAN ISO9001 quality certified manufacturing facility, and undergo 100% burn in and performance monitoring over the temperature range specified.
CODAN fully trained staff and agents provide in-factory and in-country training services, and complete installation and on-site assistance. This service is backed up by a 24 hour customer service line and a warranty of three years on manufacturing, design or component defects.
Technical specifications
Transmit section
IF input
|
Frequency range
Narrow BW option
Wide BW option
|
70 + 20 MHz/140 + 20 MHz selectable
140 + 40 MHz
|
|
Impedance
|
50/75 Ω selectable
|
| Connector |
N-type female
|
| Return loss |
18 dB minimum |
Gain specification
|
Gain
4W
8W
16W
|
64 dB nominal
68 dB nominal
71 dB nominal
|
|
Attenuator range
|
0 dB to 25 dB nominal
|
|
Attenuator step size
|
1 dB nominal
|
Gain flatness
Over IF
Narrow BW option
Wide BW option
Over frequency range
|
±1.0 dB maximum, 40 MHz
±2.0 dB maximum, 80 MHz
±2.0 dB maximum
|
| Gain stability |
±1.5 dB maximum, -40°C to +55°C
|
RF output
|
Frequency range
|
14.0 to 14.5 GHz
|
|
Connector
|
WR75, PBR120 flange with M4 tapped holes
|
|
VSWR
|
1.5:1 maximum
|
CODAN 4W VSAT SSPA
|
Output power (1 dB GCP)
|
+36 dBm minimum
|
|
Carrier to intermodulation ratio
|
-27 dBc, two carriers, each at 6 dB OPBO from 1 dB GCP
|
CODAN 8W VSAT SSPA
|
Output power (1 dB GCP)
|
+39 dBm minimum
|
|
Carrier to intermodulation ratio
|
-26 dBc, two carriers each at 6 dB OPBO from 1 dB GCP
|
CODAN 16W VSAT SSPA
|
Output power (1 dB GCP)
|
+42 dBm minimum
|
|
Carrier to intermodulation ratio
|
-25 dBc, two carriers each at 6 dB OPBO from 1 dB GCP
|
Spurious output
| Spurious output |
Meets EN 301 428 with 54 dBi antenna gain
|
Phase noise (SSB)*
|
100 Hz
|
-60 dBc/Hz maximum
|
|
1 kHz
|
-70 dBc/Hz maximum
|
| 10 kHz |
-75 dBc/Hz maximum
|
| 100 kHz |
--85 dBc/Hz maximum |
Synthesiser step size
|
Synthesiser step size
|
1 MHz
|
Frequency stability
|
-40°C to +55°C
|
±2õ10-8
|
|
Aging
|
±1õ10-7/year
|
Receive section (excluding LNB)
RF input
|
Frequency range
|
950 to 1700 MHz
|
|
Impedance
|
50 Ω
|
|
Connector
|
N-type female
|
|
VSWR
|
1.4:1 maximum |
| Noise figure |
20 dB typical |
| DC output (switch selectable) |
+15 V @ 30 to 425mA
|
| 10 MHz output |
0 dBm + 1 dB |
IF output
|
Frequency range
Narrow BW option
Wide BW option
|
70 + 20 MHz/140 + 20 MHz selectable
140 + 40 MHz
|
|
Impedance
|
50/75 Ω selectable
|
|
3rd order intercept
|
+15 dBm minimum
|
| Connector |
N-type female |
|
Return loss
|
18 dB minimum
|
Gain specification
|
Gain
|
35 dB nominal
|
|
Attenuator range
|
0 dB to 25 dB nominal
|
|
Attenuator step size
|
1 dB nominal
|
Gain flatness
Over IF
Narrow BW option
Wide BW option
Over frequency range |
±1.0 dB maximum, 40 MHz
±2.0 dB maximum, 80 MHz
+2.0 dB maximum
|
| Gain stability |
±3.0 dB maximum, -40°C to +55°C
|
| Image rejection |
50 dB minimum |
|
Spurious output
|
-65 dBm maximum
|
Phase noise (SSB)*
|
100 Hz
|
-60 dBc/Hz maximum
|
|
1 kHz
|
-70 dBc/Hz maximum
|
|
10 kHz
|
-80 dBc/Hz maximum
|
| 100 kHz |
-90 dBc/Hz maximum
|
Synthesiser step size
|
Synthesiser step size
|
1 MHz
|
Frequency stability
|
-40°C to +55°C
|
±2õ10-8
|
|
Aging
|
±1õ10-7/year
|
Low noise block converter
Indicative specifications.
Input
|
Frequency range
VSAT Band 1
VSAT Band 2
VSAT Band 3
|
10.95 to 11.7 GHz
11.7 to 12.2 GHz
12.25 to 12.75 GHz
|
|
Interface
|
WR75
|
|
VSWR
|
2.5:1 typical
|
Noise figure
|
Noise figure
|
1.2 dB at 25°C maximum
1.0 dB typical
|
Gain specification
|
Gain
|
60 dB typical
|
|
Gain flatness
|
±1.5 dB maximum full band
|
Output
|
1 dB GCP
|
0 dBm minimum
|
|
3rd order intercept
|
+11 dBm minimum
|
|
Impedance
|
50 Ω
|
| Connector |
N-type female
|
| VSWR |
1.5:1 typical |
Transmit reject filter (optional)
|
Pass band
|
10.95 to 12.75 GHz
|
|
Insertion loss
|
0.05 dB maximum
|
|
Reject band
|
13.75 to 14.5 GHz
|
|
Rejection
|
55 dB maximum
|
CODAN monitor and control
Control panel facilities
|
Indicators
|
Standby, On, Warm-up, SSPA activated, Converter fault,
LNB fault, SSPA fault, Temperature fault, Fan fault.
|
|
Controls
|
Power control (off/standby/on), SSPA (inhibit/remote/activate), Serial interface settings,
LNB supply via Rx RF input connector, Mains/Battery supply select.
|
Remote monitor and control facilities
|
Serial interface standards
|
RS232, RS422 (RS485)
|
|
Protocol standards
|
ASCII, Packet (RS485)
|
| Protocol address range |
0 to 127 |
Remote monitoring functions (serial interface)
Standby, On, Warm-up, SSPA activated, SSPA output power (8 and 16 watt transceivers only), Converter and SSPA temperatures, Converter fault, LNB fault, SSPA fault, Temperature fault, Fan fault, SSPA inhibit control, SSPA activate control, Transmit frequency, Receive frequency, Transmit attenuation, Receive attenuation, Cable compensation, Reference oscillator override, SSPA alarm enable, LNB alarm enable, Temperature compensation select, Packet address (ASCII mode only), Packet address range (ASCII mode only), Packet protocol select (ASCII mode only), SSPA mode select, Converter lock, Status change poll, Power-up mode.
Remote control functions (serial interface)
Power control (standby/on), SSPA inhibit control, SSPA activate control, Transmit frequency, Receive frequency, Transmit attenuation, Receive attenuation, Cable compensation, Reference oscillator override, SSPA alarm enable, LNB alarm enable, Temperature compensation select, Address range select (ASCII mode only), Packet protocol select (ASCII mode only), SSPA mode select, Reset, Reset change bits, Power-up mode.
Remote monitoring functions (contact closure)
Standby, Warm-up, SSPA activated, Converter fault, LNB fault, SSPA fault, Temperature fault, Fan fault.
Remote control functions (contact closure)
Power control (standby/on), SSPA inhibit control, SSPA activate control.
Power
|
Input voltage
|
42 to 72 V DC (floating input) standard 115/230 V AC + 15% with power supply unit
|
Power consumption
|
DC
4W
8W
16W
50W
|
115W maximum SSPA On
165W maximum SSPA On
250 W maximum SSPA On
maximum SSPA Off
|
|
AC
4W
8W
16W
|
180 VA typ. @ nom. AC voltage SSPA On
260 VA typ. @ nom. AC voltage SSPA On
390 VA typ. @ nom. AC voltage SSPA On
|
Environmental
CODAN Converter module and SSPA module
|
Temperature
|
-40°C to +55°C
|
|
Relative humidity
|
100%
|
|
Cooling
|
Converter-Convection
4W-Convection
8W, 16W-Forced air
|
| Weatherproofing |
Sealed to 34 kPa
|
Power supply unit
|
Temperature
|
-40°C to +55°C
|
|
Relative humidity
|
100%
|
|
Cooling
|
Convection
|
| Weatherproofing |
Sealed to IP65
|
Physical
All dimensions are measured over the connectors.
Size
|
CODAN Converter module
|
110 mm W x 410 mm D x 240 mm H
|
|
CODAN SSPA module, 4W
|
140 mm W x 300 mm D x 145 mm H
|
|
CODAN SSPA module, 8W, 16W
|
140 mm W x 335 mm D x 195 mm H |
| CODAN Power Supply Unit |
200 mm W x 160 mm D x 370 mm H
|
Weight
|
CODAN Converter module
|
8 kg
|
|
CODAN SSPA module, 4W
|
5.1 kg
|
|
CODAN SSPA module, 8W, 16W
|
6 kg
|
| CODAN Power Supply Unit |
9 kg
|
