CODAN 5700 series C Band high power VSAT transceivers offer a wide range of distinctive advantages and enhanced features for satellite communications systems based in remote or challenging geographic regions.
Available in single or dual synthesizer options, extended VSAT C-Band frequency bands and 70 or 140MHz IF configurations-and a range of power outputs the 5700 series high power VSAT transceivers provide industry leading technical performance.
Key features
Durability
The 5700 high power transceivers are designed and tested to meet their performance specifications in an ambient temperature range from -40°C to +55°C, ensuring long-term survival in extreme conditions. Field experience shows that MTBF of greater than 60,000 hours can be expected.
RF performance
RF performance is superb, particularly intermodulation performance, gain stability over temperature and flatness across the IF band. These transceivers also boast industry leading spurious and harmonics specifications while guaranteed RF performance ensures expensive system link margins do not have to be used to cope with RF transceiver variations. The high linearity and low spurious characteristics contribute to superior multi-carrier performance.
Output power options
The C Band high power VSAT transceiver is available with 60 watts and 120 watts output power rating.
Power consumption
CODAN high power VSAT transceivers feature low power consumption and low temperature rise, ensuring internal components do not suffer undue stress.
Power supply
All the high power transceivers are AC mains powered and may be field selected to operate from either 115 V AC or 230 V AC.
Internal protection
Internal protection against high temperature and short or open circuit RF output is standard.
Advanced features
Enhanced monitor and control
All operating functions can be controlled and monitored via the serial interface, and the operating configuration is stored in EEPROM to ensure the set-up parameters are restored in the event of a power failure.
Universal interface compatibility
The 5700 series high power transceivers has universal interface compatibility capable of operating with dumb VSAT terminals, laptop/PC emulating terminals, handheld terminals and personal organizers without requiring proprietary software. The versatile configuration options support contact closure, RS232, RS422 and RS485 (2 or 4 wire).
Two dedicated controllers are available from CODAN:
5560 Hand-Held Controller, suitable for in the field installation setup
5570 Remote Controller, suitable for indoor rack mounting to provide permanent monitoring and control capabilities

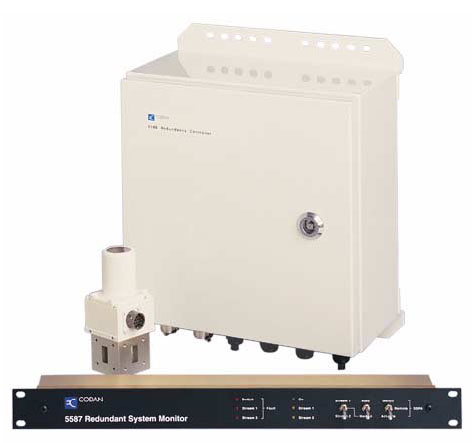

Redundancy switching system
A redundancy switching system is available to provide an automatic changeover to a second VSAT transceiver to maximize availability and minimize any disruption to service. This system is fully outdoor mounted, but can be supplied with the 5587 Redundant System Monitor to provide indoor monitoring and control.
Major configuration options
C Band frequency band (GHz)
Transmit
Receive
2 C Band extended
5.850-6.425
3.625-4.200
VSAT C-band transmit/receive frequency control
D - Dual synthesizer
S - Single synthesizer
Bandwidth
N - Narrow band (40MHz)
Field selectable 70 or 140MHz IF
W - Wide band (80 MHz)
140 MHz IF only
Output power
C Band
60 W and 120W
WR137 waveguide output standard
LNA
A selection of LNA is available to best meet noise temperature and configuration needs.
Options and accessories
Hand-Held Controller
Remote Controller
Redundancy Switching Systems
Transmit Reject Filters
Antenna Mounting Kits
CODAN quality and service
The high power transceivers built and tested in CODAN ISO9001 quality certified manufacturing facility, and undergo 100% burn in and performance monitoring.
CODAN fully trained staff and agents provide in-factory and in-country training services and complete installation and on-site assistance. This service is backed up by a 24 hour customer service line and a warranty of three years on manufacturing, design or component defects.
Technical specifications
Transmit section
IF input
Frequency range
Narrow BW option
Wide BW option
70 + 20 MHz/140 + 20 MHz selectable
140 ± 40MHz
Impedance
50/75 Ω selectable
Connector
N-type female
Return loss
18 dB minimum at 50 Ω
Gain specification
Gain
60 W, 120W
74 dB minimum
(0 dB SSPA & Converter attenuator settings)
Attenuator ranges
0 dB to 25 dB nominal (Converter)
0 dB to 20 dB nominal (SSPA)
Attenuator step size
1 dB nominal
Gain flatness
Narrow BW option
Wide BW option
±1.0 dB maximum, 40 MHz
±2.0 dB maximum, 80 MHz
Gain stability
±2.0 dB maximum, -40°C to +55°C
RF output
Frequency range
5.850–6.425 GHz
Connector
CPR137-G
VSWR
1.25:1 maximum
60W SSPA
Output power at 25°C
+47.8 dBm (60W) typical at saturation
+47.0 dBm minimum at 1 dB GCP
Carrier to intermodulation ratio
-26 dBc, two carriers, each at 6 dB OPBO from 1 dB GCP
120W SSPA
Output power at 25°C
+50.8 dBm (120 W) typical at saturation
+50.0 dBm minimum 1 dB GCP
Carrier to intermodulation ratio
-26 dBc, two carriers, each at 6 dB OPBO from 1 dB GCP
Spurious output
Spurious output
–60 dBc maximum at 1 dB GCP
Harmonics
Harmonics
–50 dBc maximum at 1 dB GCP
Phase noise (SSB)**
100 Hz
-60 dBc/Hz maximum, -75 dBc/Hz typical
1 kHz
-70 dBc/Hz maximum, -80 dBc/Hz typical
10 kHz
-80 dBc/Hz maximum, -85 dBc/Hz typical
100 kHz
-90 dBc/Hz maximum, -95 dBc/Hz typical
Synthesiser step size
Synthesiser step size
1MHz
Frequency stability
-40°C to +55°C
±1õ10-8
Aging
±1õ10-7/year
Receive section (excluding LNA)
RF input
Frequency range
3.625 to 4.200 GHz
Impedance
50 Ω
Connector
N-type female
VSWR
1.4:1 maximum
Noise figure
18 dB typical
DC output (switch selectable)
+15 V @ 75 to 250mA
IF output
Frequency range
Narrow BW option
Wide BW option
70 + 20 MHz/140 + 20 MHz selectable
140 + 40 MHz
Impedance
50/75 Ω selectable
Connector
N-type female
Return loss
18 dB minimum at 50 Ω
Gain specification
Gain
45 dB nominal
Attenuator range
0 dB to 30 dB nominal
Attenuator step size
1 dB nominal
Gain flatness
Narrow BW option
Wide BW option
±1.0 dB maximum, 40 MHz
±2.0 dB maximum, 80 MHz
Gain stability
±4.0 dB maximum, –40°C to +55°C
Image rejection
50 dB minimum
Spurious output
-65 dBm maximum
Phase noise (SSB)**
100 Hz
-60 dBc/Hz maximum, -75 dBc/Hz typical
1 kHz
-70 dBc/Hz maximum, -80 dBc/Hz typical
10 kHz
-80 dBc/Hz maximum, -85 dBc/Hz typical
100 kHz
-90 dBc/Hz maximum, -95 dBc/Hz typical
Synthesiser step size
Synthesiser step size
1MHz
Frequency stability
-40°C to +55°C
±1õ10-8
Aging
±1õ10-7/year
Low noise amplifier
Indicative specifications; LNAs with lower noise temperatures are also available.
Input
Interface
CPR229-G
Noise temperature
40 K at 25°C
Gain specification
Gain
50 dB minimum
Output
1 dB GCP
+5 dBm minimum
3rd order intercept
+16 dBm minimum
Impedance
50 Ω
Connector
N-type female
VSWR
1.5 : 1 maximum
Transmit rejection filter (optional)
Indicative specifications.
Insertion loss
0.05 dB maximum
Rejection
55 dB minimum
Monitor and control
LNA interface
DC output
+15 V @ 75 to 400 mA
Alarm input
Current monitoring as specified, and contact closure; O/C is fault condition
Monitor and control facilities (converter)
Indicators
Standby, On, Warm-up, SSPA activated, Converter fault, LNA fault, SSPA fault, Temperature fault, Fan fault.
Controls
Power control (off/standby/on), SSPA control (inhibit/remote/ activate), Serial interface settings, LNA supply via RX RF input connector, Mains/Battery supply select.
Monitor and control facilities SSPA
Indicators
Online, Alarm, Standby, Maintenance
Display
Output power, Heatsink temperature, Alarms
Controls
State, Gain, Compensation
Remote monitor and control facilities (only via converter)
Serial interface standards
RS232, RS422 (RS485)
Protocol standards
ASCII, Packet (RS485)
Packet protocol address range
0 to 127
Remote monitoring functions (serial interface)
Standby, On, Warm-up, SSPA activated, Converter fault, LNA fault, SSPA fault, Temperature fault, SSPA inhibit control, SSPA activate control*, Transmit frequency*, Receive frequency*, Transmit attenuation*, Receive attenuation*, Cable compensation*, Reference oscillator override*, SSPA alarm enable*, LNA alarm enable*, Fan alarm enable*, Temperature compensation*, Address*, SSPA mode*, Converter lock, Packet protocol*, IF impedance*, IF frequency*.
Remote control functions (serial interface)
Power control (standby/on), SSPA inhibit control, SSPA activate control*, Transmit frequency*, Receive frequency*, Transmit attenuation*, Receive attenuation*, Cable compensation*, Reference oscillator override*, SSPA alarm enable*, LNA alarm enable*, Fan alarm enable*, Temperature compensation select*, Address range*, SSPA mode*, Packet protocol*, IF impedance*, IF frequency*.
All of the above serial interface functions are accessible via the Remote Controller 5570. The functions supported by the Hand-Held Controller 5560 are indicated by an asterisk (*).
Power supply
